professional solar module manufacturer
APsystems EZ1-M-EU Solar Micro Inverter

You are in:

/ Home /

APsystems

/

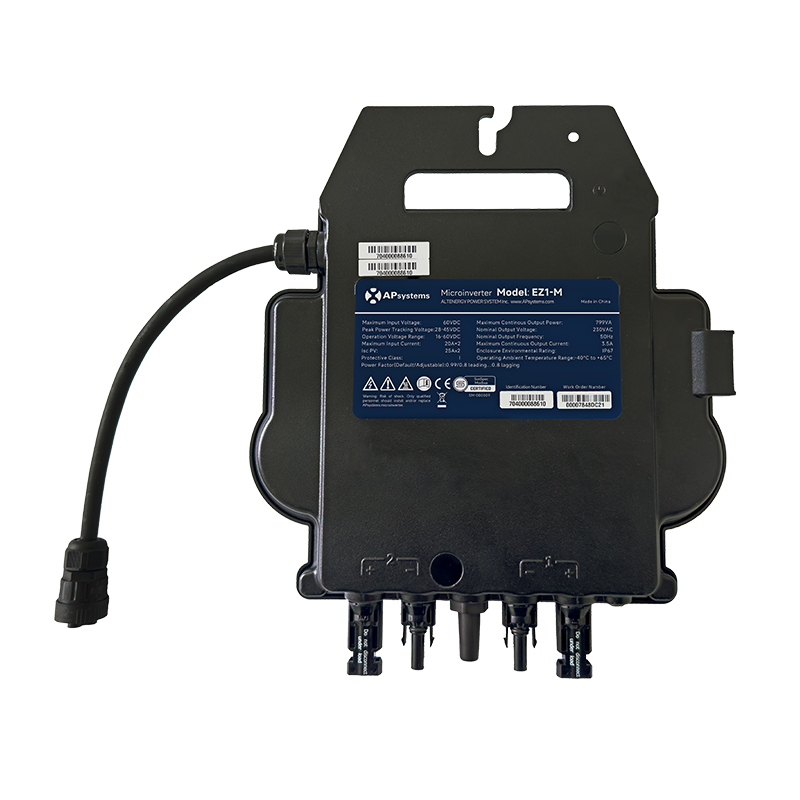

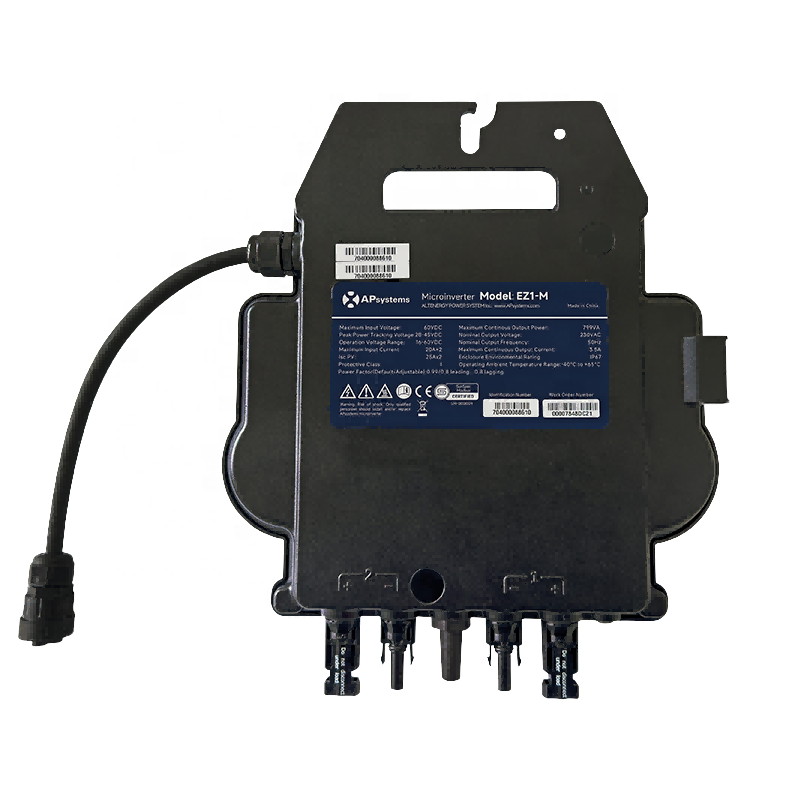

APsystems EZ1-M-EU Solar Micro Inverter

Grid Tied WiFi Micro Inverter

APsystems EZ1-M-EU Solar Micro Inverter

EZ1-M-EU Solar Micro Inverter（WIFI Version）

1.One microinverter connects to two modules

2.Max output power reaching 799/960VA

3.Two input channels with independent MPPT

4.High Input current to adapter to large modules

5.Maximum reliability, IP67

6.Built in Wi-Fi and Bluetooth

7.Safety protection relay integrated

8.Dedicated for balcony and DIY systems

  • Pieces per carton :

    10

  • weight /carton :

    29

  • Carton dimension :

    46.7x37.2x30 CM

  • cartons per pallet :

    18

  • pieces per pallet :

    180

  • QTY for 40'HQ :

    7200

  • QTY for 20'GP :

    3240

  • Pallet dimension :

    118×100×105cm

  • weight /pallet :

    542 KG

  • Remarks :

    40 plt for 40'HQ, 18 plt for 20'GP
Inquiry now Download

Basic Info.

Model NO.
EZ1 600/799/960VA
Brand
Apsystems
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Cooling
Natural Convection (No Fans)
Protection Degree
IP67
MPPT Efficiency
99.5%
Night Power Consumption
20MW
Type of Isolation
High Frequency Transformers, Galvanically Isolated
PV Input Power
300wp-760wp+
Communication
Encrypted Zigbee
Working Temperature Range
-45~65ºC
MPPT Voltage Range
16V-60V
Weight
2.8kg,3kg
Transport Package
Box with Pallet
Specification
263mm x 218mm x 36.5mm/37mm
Trademark
APsystems
Origin
China
HS Code
8504403090
Production Capacity
10000set/Sets Per Week

Product Description


Product Description


Grid Tied WiFi Micro Inverter Sine Wave Inverter 1400W 600W 800W 1000W 2-in-1 Micro Inverters
Technical Specifications

Model
EZ1-M
EZ1-H
Region
EMEA
Input Data (DC)
Recommended PV Module Power (STC) Range
300Wp-730Wp+
410Wp-760Wp+
Peak Power Tracking Voltage
28V-45V
Operating Voltage Range
16V-60V
Maximum Input Voltage
60V
Maximum Input Current
20A x 2
Isc PV
25A x 2
Output Data (AC)
Maximum Continuous Output Power
600VA(3)/799VA
960VA
Nominal Output Voltage/Range(1)
230V/184V-253V
Nominal Output Current
2.6A(3)/3.5A
4.2A
Nominal Output Frequency/ Range(1)
50Hz/48Hz-51Hz
Default Power Factor
0.99
Efficiency
Peak Efficiency
97.3%
Nominal MPPT Efficiency
99.5%
Night Power Consumption
20mW
Mechanical Data
Operating Ambient Temperature Range(3)
-40 °C to +65 °C
Storage Temperature Range
- 40 °C to + 85 °C
Dimensions (W x H x D)
263mm x 218mm x 36.5mm
263mm x 218mm x 37mm
Weight
2.8kg
3kg
DC Connector Type
Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
Cooling
Natural Convection - No Fans
Enclosure Environmental Rating
IP67
Features
Communication
Built-in Wi-Fi and Bluetooth
Maximum units connected(4)
2
Isolation Design
High Frequency Transformers, Galvanically Isolated
Energy Management
AP EasyPower APP
Warranty
12 Years Standard; 20 Years Optional
Compliances
Safety, EMC & Grid Compliances
EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1;DIN V VDE V 0126-1-1; VFR; UTE C15-712-1; CEI 0-21;UNE 217002; NTS; RD647; VDE-AR-N4105
Monitoring Solution

Grid Tied WiFi Micro Inverter Sine Wave Inverter 1400W 600W 800W 1000W 2-in-1 Micro Inverters
