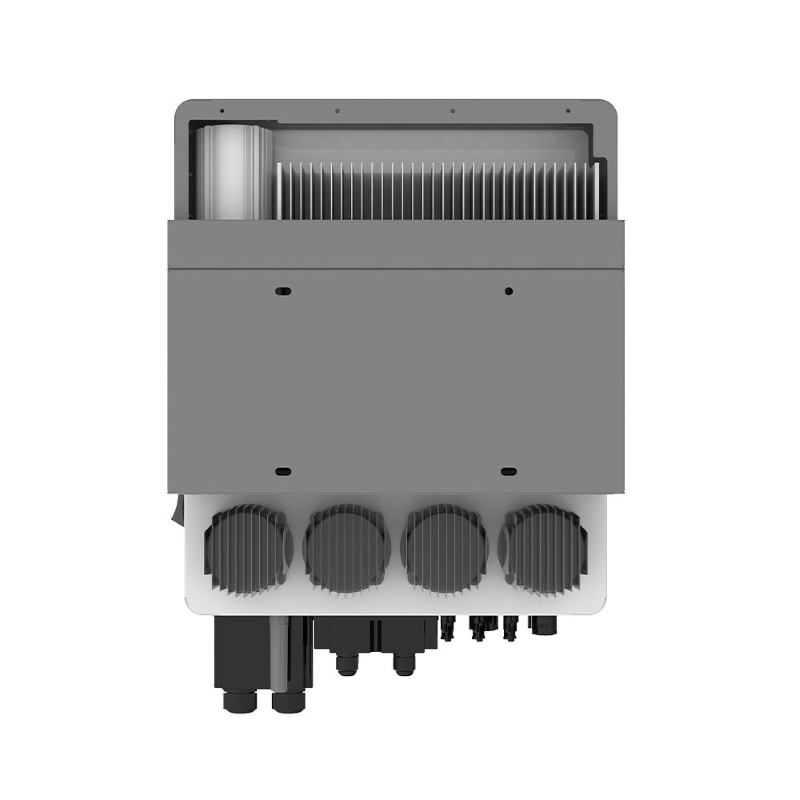

CHISAGE ESS Mars-5/6/8/10/12/14 G2-LE 48V On Off Grid Three Phase Hybrid Solar Inverter

CHISAGE ESS Mars-5/6/8/10/12/14 G2-LE
CHISAGE ESS Solar inverter Three Phase
CHISAGE ESS Hybrid On Off Grid Solar Inverter

CHISAGE ESS Mars-5/6/8/10/12/14 G2-LE 48V On Off Grid Three Phase Hybrid Solar Inverter

  • 5-14kW Rated AC Output Power
  • ARC fault detection optional
  • Support on/off grid mode switch, EPS output
  • Support storing energy from diesel generator

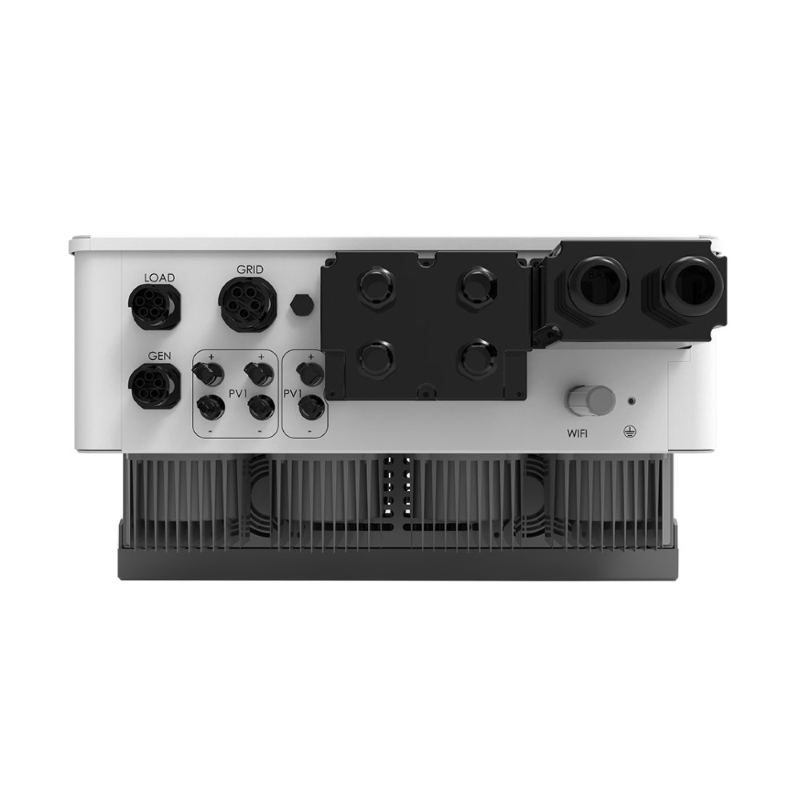

  • Independent AC input port for diesel generator
  • 20 PCS inverters parallel for off-grid operation

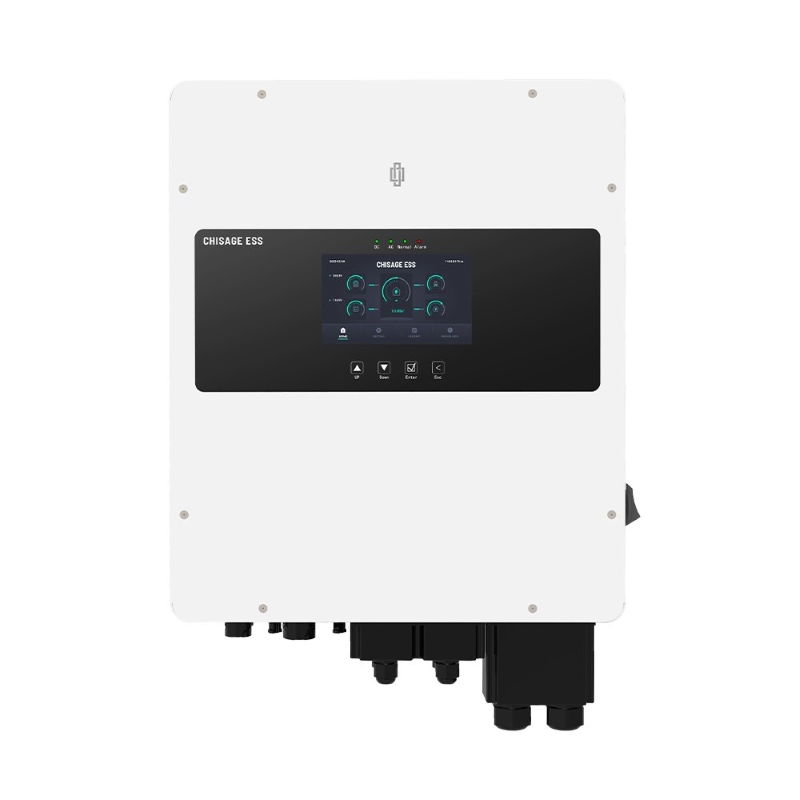

  • Colorful 7-inch touch LCD, IP65 protection degree
  • Support different power inverters parallel connection
  • Support battery charging/discharging according to the time setting
  • 100% unbalanced output, each phase max. output up to 50% rated power
Inquiry now Download


Product Description

Chisage 5kw 8kw 10kw 12kw MPPT Solar Hybrid Power Inverter for Home Solar Energy System

Product Features

Chisage 5kw 8kw 10kw 12kw MPPT Solar Hybrid Power Inverter for Home Solar Energy SystemChisage 5kw 8kw 10kw 12kw MPPT Solar Hybrid Power Inverter for Home Solar Energy SystemChisage 5kw 8kw 10kw 12kw MPPT Solar Hybrid Power Inverter for Home Solar Energy SystemSupport different power inverters parallel connection. 20 PCS inverters parallel for off-grid operation

Specification

Chisage 5kw 8kw 10kw 12kw MPPT Solar Hybrid Power Inverter for Home Solar Energy System

Model Mars-5G2-LE Mars-6G2-LE Mars-8G2-LE Mars-10G2-LE Mars-12G2-LE Mars-14G2-LE
Battery Input
Battery Type Lead-acid or Li-Lon
Battery Voltage Range (V) 40~60
Max. Charge Current (A) 120 130 200 220 250 280
Max. Discharge Current (A) 120 130 200 220 250 280
Charging Curve 3 Stages / Equalization
External Temperature Sensor Optional
Charging Strategy for Li-Ion Battery Self-Adaption to BMS
PV String Input
Max. DC Input Power (W) 7500 9000 12000 15000 18000 20000
PV Input Voltage (V) 650 (160~800)
MPPT Range (V) 200~700
Full Load DC Voltage Range (V) 260~650
Start-up Voltage (V) 160
PV Input Current (A) 17+17 26+17
Max. PV Isc (A) 20+20 34+20
No. of MPPT Trackers 2
No. of String per MPPT Trackers 1+1 2+1
AC Output
Rated AC Output and UPS Power (W) 5000 6000 8000 10000 12000 14000
Max. AC Output Power (W) 6000 7200 9600 12000 13200 15400
Peak Power (off grid) 2 times of rated power, 10s 1.8 times of rated power, 10s
AC Output Rated Current (A) 7.6/7.3 9.1/8.7 12.1/11.6 15.2/14.5 18.2/17.4 21.2/20.3
Max. AC Current (A) 11.4/10.9 13.6/13 18.2/17.4 22.7/21.7 27.3/26.1 27.6/26.4
Max. Continuous AC Passthrough (A) 30 50
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and Voltage (V) 50/60Hz, 380/400Vac(Triple phase)
Grid Type Three phase
Current Harmonic Distortion THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency 97.90%
Euro Efficiency 96.90%
MPPT Efficiency 99.90%
Protection
Integrated PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation
Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV Arc Fault Detection Optional
Output Over Voltage Protection DC Type II / AC Type III
Certifications and Standards
Grid Regulation CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11
Safety Regulation IEC/EN62109-1, IEC/EN62109-2
EMC IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range (°C) -40~60, >45 Derating
Cooling Smart Cooling
Noise (dB) ≤45
Communication with BMS RS485; CAN
Weight (kg) 38 40 42 44 44 45
Dimensions (mm) 510Wx630Hx290D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years
