professional solar module manufacturer

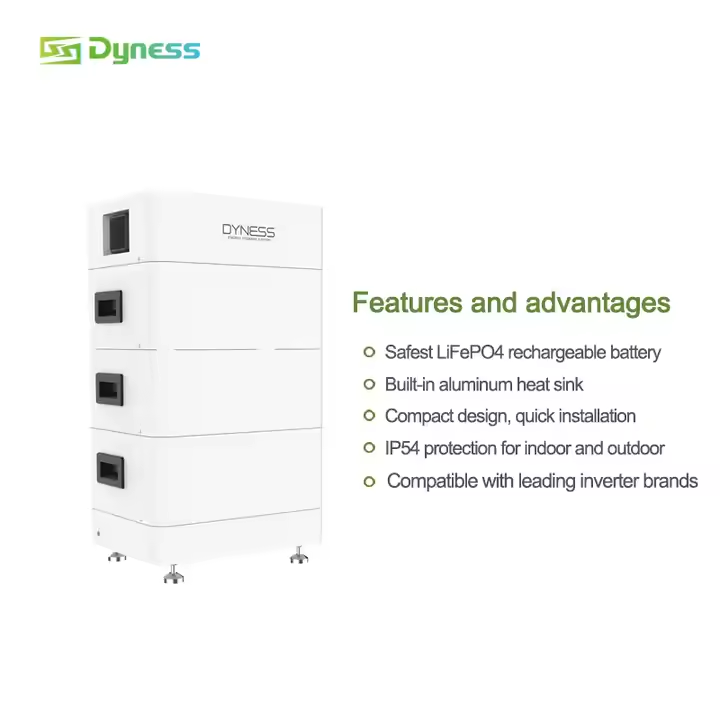

Dyness tower T10 Wireless connection automatic matching High voltage Stackable lithium ions battery

The upgraded Tower Series is tailor-made for large residential

application. Stackable design with self-adaptive modules, five

energy choices of up to 21.31kWh with parallel connection

available, advanced LiFePO4 technology, remote upgrade,

high waterproof level and good cooling function... Whatever

you need, Dyness Tower Series is there to meet your requirements.

Item
Value
Key Words
384V 576V 37Ah 15kWh 20kWh / Residential Power Energy / Easy to Install and Expand
Application
Lithium ion Battery / Solar Energy Storage Systems / Home Appliances / Consumer Electronics / Electric Power Systems / Power Tools / Uninterruptible Power Supplies
Place of Origin
China
Brand Name
Dyness
Battery Type
LiFePO4
Model
Tower T7
Tower T10
Tower T14
Tower T17
Tower T21
Module Number
2
3
4
5
6
Nominal Energy
7.10 kWh
10.66 kWh
14.20 kWh
17.76 kWh
21.31 kWh
Nominal Capacity
37Ah
Nominal Voltage
192V
288V
384V
480V
576V
Net Weight
105kg
231 lbs
146kg
321 lbs
187kg
412 lbs
228kg
502 lbs
269kg
593 lbs
Dimension/mm
                   /inch
  700*504*380
27.6*19.8*14.9
  900*504*380
35.4*19.8*14.9
1100*504*380
43.3*19.8*14.9
1300 *504*380
51.2*19.8*14.9
1500 *504*380
59.1*19.8*14.9
Cycle Life
6000+ Cycles
Protection Level
IP54
Charging Temp. Range
0~50 ℃
Discharging Temp. Range
-10~50 ℃
Internal Battery Module
High Voltage 9637
Communication
CAN
Certification
UN38.3/CE-EMC/EC62040/1EC62619/IEC62477/EC60730/IEC63056/UKCA/CECAccredited/UL1973/VDE2510-50
Compatible Inverters
Goodwe / Victron / Imeon / Solis / Luxpower / Growatt / Voltronic / Deye / SAJ Etc.
OEM/ODM
Warmly Welcomed
Warranty
 10 Years
