Fox ESS H3-15.0/20.0/25.0/30.0 PRO Three-Phase Solar Hybrid AC Inverter

Fox ess15kW 20kw 22kW 25kW 30KW Solar Inverters

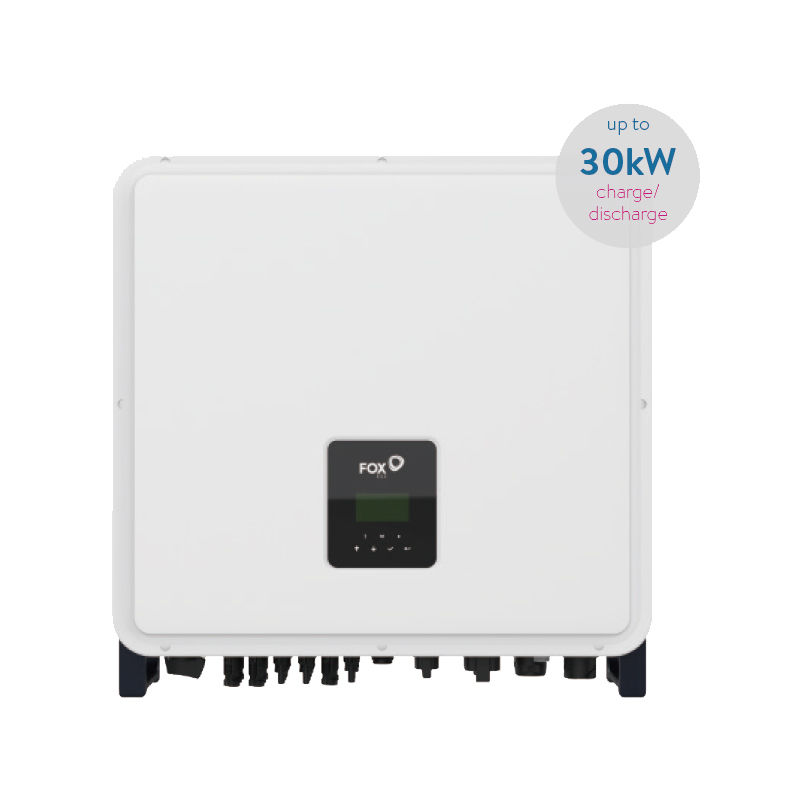

Fox ESS H3-15.0/20.0/25.0/30.0 PRO Three-Phase Solar Hybrid AC Inverter

Easy Installation

Flexible configuration. plug and play set-up, built-in fuse protection.

High Voltage

Includes high-voltage batteries for maximum round-trip efifciency.

IP65 Rated

Engineered to last with maximum flexibility. Suitable for outdoor installation.

Remote Monitoring

Monitor your system remotely via smart phone app or web portal.

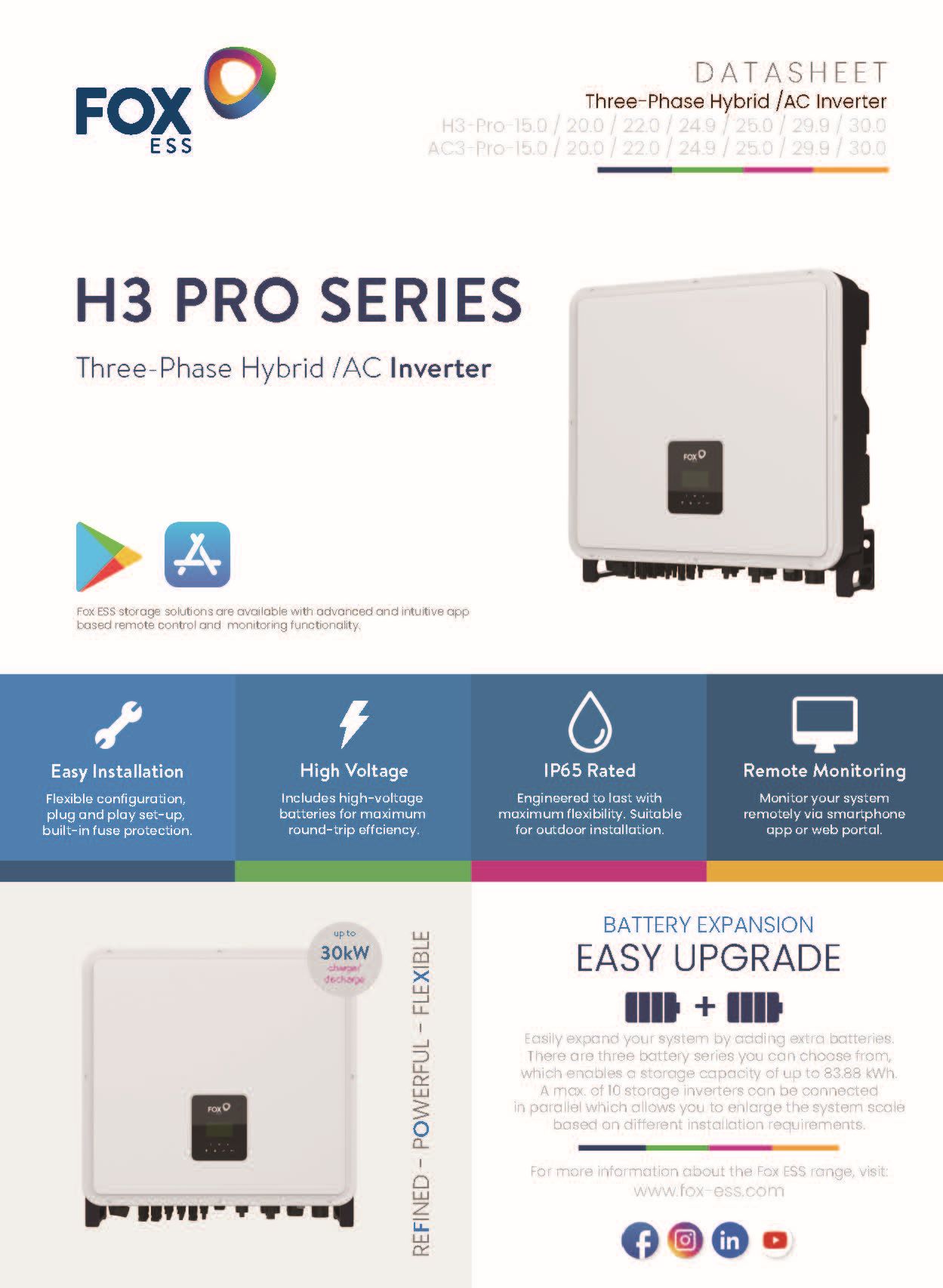

Inquiry now Download

Product Details

Specification

Model No.

H3-Pro-10.0 / AC3-Pro-10.0

H3-Pro-12.0 / AC3-Pro-12.0

H3-Pro-15.0 / AC3-Pro-15.0

H3-Pro-20.0 / AC3-Pro-20.0

H3-Pro-22.0 / AC3-Pro-22.0

H3-Pro-24.9 / AC3-Pro-24.9

H3-Pro-25.0 / AC3-Pro-25.0

H3-Pro-30 / AC3-Pro-29.9

H3-Pro-30.0 / AC3-Pro-30.0

Input Data(DC)

Max. DC Power

15 kW

18 kW

22.5 kW

30 kW

33 kW

37.5 kW

45 kW

Max. DC Voltage

1000 V

Nominal DC Voltage

750 V

Min. DC Voltage to Start Feed In

160 V

Max. DC Current

16 A

32 A

MPP(T) Voltage Range

150~850 V

No of MPP Trackers

DC Inputs

Output Data (AC)

Max. AC Power

11 kW

13.2 kW

16.5 kW

22 kW

24.2 kW

24.9 kW

27.5 kW

29.9 kW

30 kW

Nominal AC Power

10 kW

12 kW

15 kW

20 kW

22 kW

25 kW

Output AC Voltage Range

220~400 V

Max. AC Current

50.1 A

60 A

75 A

99.9 A

110.1 A

113.1 A

125.1 A

136.2 A

136.5 A

Frequency Range

45-65 Hz

Frequency

50, 60 Hz

Power Factor (cosθ)

Distortion (THD)

< 3 %

No of feed-in phases

Max. Efficiency

97.8 %

Euro Efficiency

97.3 %

97.4 %

General Data

Dimensions (H/W/D)

560x600x225 mm

Weight

52.5 kg

Noise Level

< 45 dB(A)

< 60 dB(A)

Operating Temperature

-25 ~ +60 ℃

Protection Class

IP65

Humidity

0-95 %

Cooling

Fan

Max. Altitude

4000 m

Interface

RS 485, USB, WLAN

Display

LCD

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
