professional solar module manufacturer

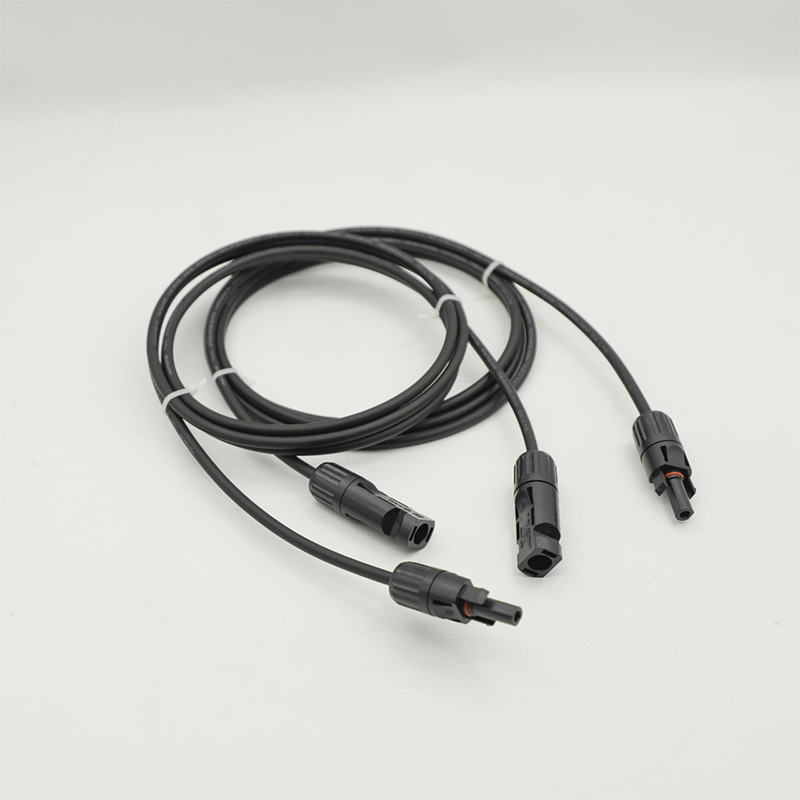

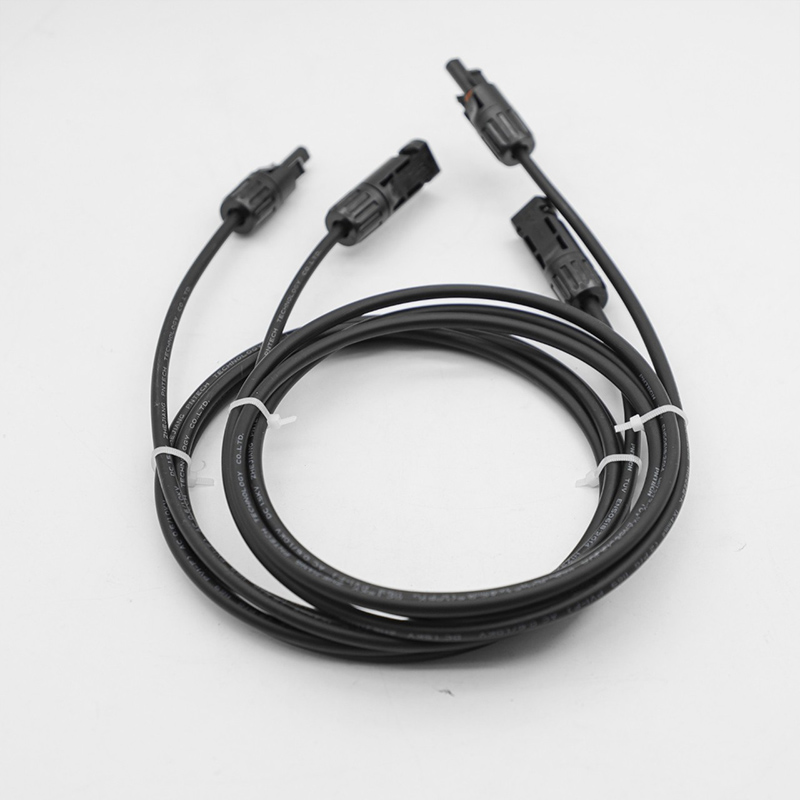

Solar PV Extension Cable Connector

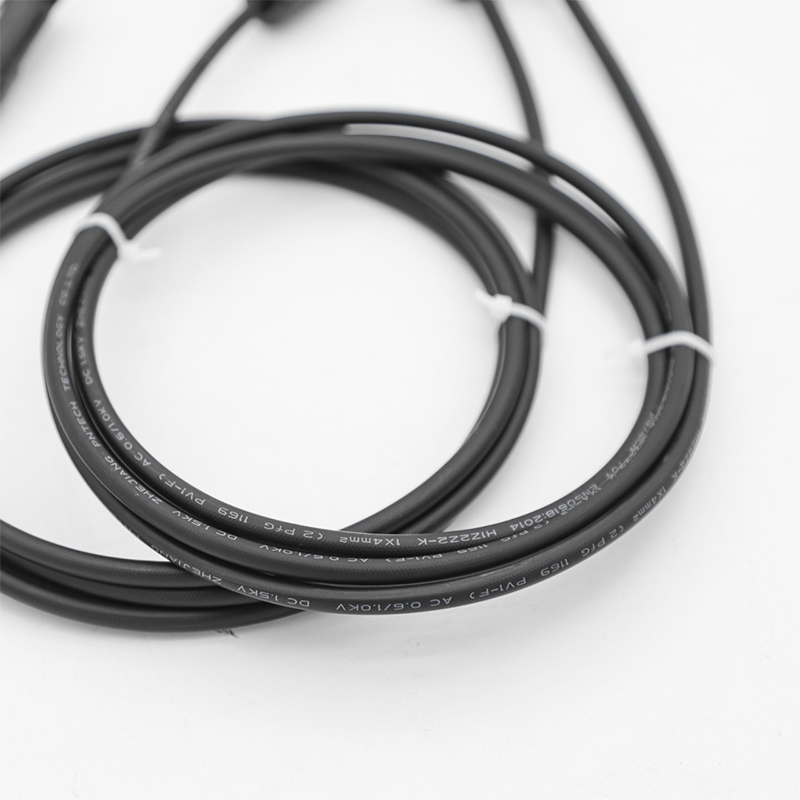

DC SOLAR PV CABLE

Standard TÜV/ EN50618:2014

Cross Section 4mm²

ConstructionTinned copper wire: 56x0.285( ±0.015

Cable Od: 5.6±0.2

Cable Color: Male/ Black  Female/ Black

Cable Length: customized

Connector

Electrical Characteristics

Type

PV004-EN

Rated Voltage 1000V/ 1500V DC

Insulation Materical

PC EXL9330

Rated Current30A

Contact materials



Tin plated copper

Protection DegreeIP67

Number

Pair

2

Contact Resistance≤0.5mΩ

Type of termination

Crimping

Ambient Temperature-40℃~+90

Inspection items

Flame ClassUL94V-O



Facade

Surface should be clean and

smooth,without scratchs, burr and

deformation.

Product features



Conduction

Whether the connection between the  positive and negative terminals of the connector is conduction.

1 Excellent anti-aging and uv-resistant, to meet the using under the outdoor harsh environmental conditions require.



Assembly

When assembling, both sides of the buckle can be stuck in place, insertion force ≤50N, pulling force ≥50N

2 Snap-in Lock, easy to assemble,unbreakable





3  MC4 Connector

Packing specification

4 Apply to high current, high votltage, with low contact resistance, waterproof and dustproof design





Packaging as required





APPROVED

CHECKED

DESIGNE

DDATE
