professional solar module manufacturer

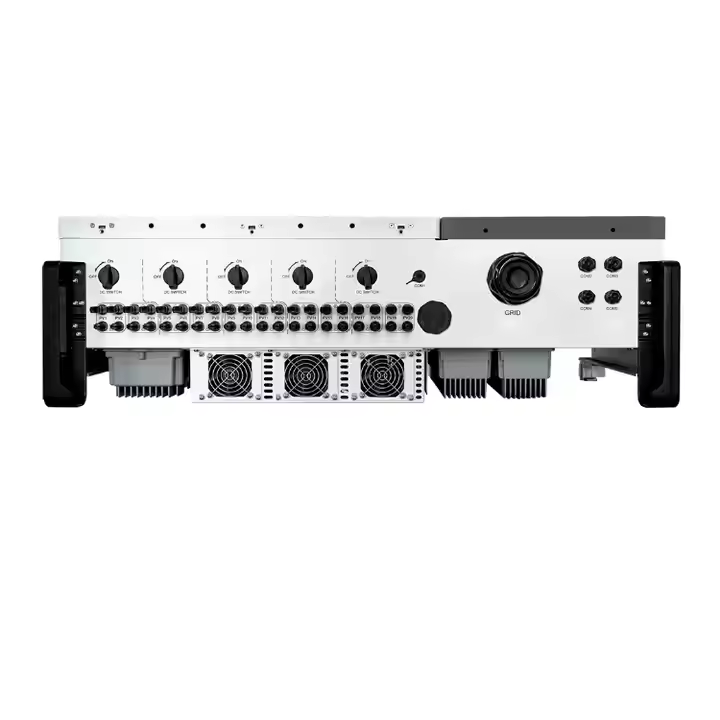

Solis Three Phase Inverters 400v 9mppts Ip66 Safe Solar Inverter

• Integrated 4 MPPTs for multiple array orientations

• Up to 50A max charge/discharge current

• String current up to 20A, perfectly match large current modules

• 10 second 200% surge power backup overload capability

• Supports Max 6 pcs in parallel

• Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port

• Supports peak shaving control in both "self-use" and "generator" mode

• 6 customisable charge/discharge time settings

• Automatic UPS switching

• Intelligent AC coupling scheme, easily upgrade existing grid-connected systems

Specification
item
value
Place of Origin
China
Brand Name
Solis
Model Number
S6-EH3P(12-20)K-H
System Energy
12KW, 155KW, 20KW
Input Voltage
160VAC/1000VAC
Output Voltage
380 - 400 V
Output Current
18.2 A / 17.3 A,    22.8 A / 21.7 A ,     30.4 A / 28.9 A
Output Frequency
50Hz/60Hz
Size
563*546*235 mm
Type
Li-ion
Inverter Efficiency
98.5 % / 97.5 %
Certificate
CE/TUV/IEC/CQC/MEA/PEA/INMETRO
Warranty
10 Year
Weight
TBD
Application
Solar Power System, Home/Commercial/Factory
Start Voltage
200V-850V
Protection
IP66
Communication
CAN/RS485
Inverter type
Three Phrase
size
563*546*235 mm





At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
