professional solar module manufacturer
SUNGROW SH15/20/25T Residential 3ph hybrid Solar inverter

You are in:

/ Home /

SUNGROW

/

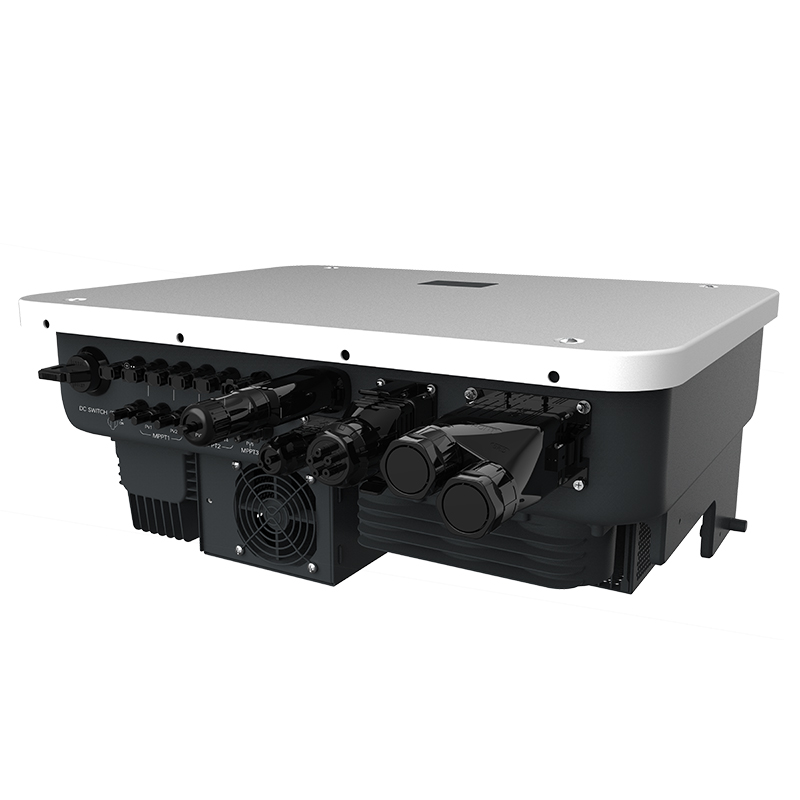

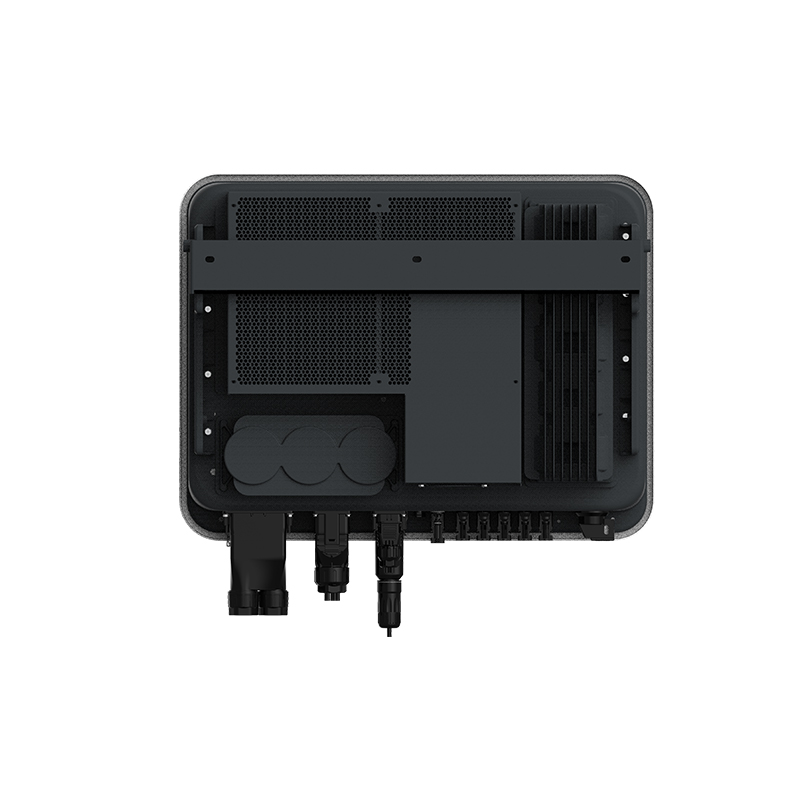

SUNGROW SH15/20/25T Residential 3ph hybrid Solar inverter

SUNGROW SH15/20/25T Solar inverter
SUNGROW Residential 3ph hybrid Solar inverter
SUNGROW 15 W 20W 25W Solar inverter

SUNGROW SH15/20/25T Residential 3ph hybrid Solar inverter

FULL BACK

·Built-in 63 A bypass for whole home backup

·10 ms seamless switch

·Peak output up to 36500 VA ( 10 s ) in backupmode ( SH25T )



FLEXIBLE APPLICATION

·Support 100 % unbalance output in backup

·and on grid mode

·Max. 16 A DC input current per string



·50 A fast charge / discharge current



FRIENDLY INSTALLATION

·Plug & Play installation



·Quiet operation for indoor or outdoor installation



SAFE AND DURABLE

·Support precise AFCI



·IP65/C5



Inquiry now Download
Overview

Specification

Type designation SH15T                                         SH20T                                       SH25T
Input (DC) 　
Recommended max. PV input power
Max. PV input voltage *		 30000 Wp                                    40000 Wp                                    50000 Wp
1000 V
Min. PV input voltage / Startup input voltage 150 V / 180 V
Rated  PV input voltage 600 V
MPPT operating voltage range ** 150 V - 950 V
No. of independent MPP trackers 3
No. of PV strings per MPPT 2 / 2 / 1
Max. PV input current 80 A ( 32 A / 32 A / 16 A )
Max. DC short-circuit current 100 A ( 40 A / 40 A / 20 A )
Max. current for input connector 30 A
Battery data 　
Battery type Li-ion battery
Battery voltage range 100 V - 700 V
Max. charge / discharge current *** 50 A / 50 A
Max. charge / discharge power 30000 W / 15000 W                        30000 W / 20000 W                  30000 W / 25000  W
Input and  Output (AC) 　
Max. AC power f rom grid **** 43000 VA
Rated  AC output power 15000 W                                            20000 W                                      25000  W
Max. AC output apparent power 15000 VA                                           20000 VA                                     25000  VA
Max. AC output current 22.8 A                                                 30.4 A                                           37.9 A
Rated  AC voltage 3 / N / PE, 220 V / 380 V ; 230 V / 400  V; 240 V / 415 V
AC voltage range 270 V - 480  V
Rated  grid f requency 50 Hz / 60 Hz
Grid f requency range 45 Hz - 55 Hz / 55 Hz - 65 Hz
Harmonic (THD) < 3 %  ( of rated power )
Power factor at rated power / Adjustable power factor > 0.99 / 0.8 leading to 0.8 lagging
Feed-in phases  / connection phases 3 / 3-N-PE
Backup data(on grid mode) 　
Max. output power for backup load  **** 43000 W
Max. output current for backup load 3 * 63 A
Backup data(off-grid mode) 　
Rated  voltage 3 / N / PE, 220 / 380 V; 230 / 400  V; 240 / 415 V  ( ± 2 % )
Rated  f requency 50 Hz / 60 Hz  ( ± 0.2 % )
THDV ( @Linear load  ) 2 %
Backup switch time < 10 ms
Rated  output power 15000 W / 15000 VA                       20000 W / 20000 VA                 25000  W / 25000  VA
Peak output power ***** 25500 W /                                          32000  W /                                    36500  W /
25500 VA ,10 s                                  32000  VA ,10 s                            36500  VA ,10 s
Efficiency 　
Max. efficiency / European efficiency 98.1 % / 97.6 % 98.2 % / 97.8 %
Protection & Function 　
Grid monitoring Yes
DC reverse  polarity protection Yes
AC short-circuit protection Yes
Leakage current protection Yes
DC switch (solar) Yes
Surge  protection DC Type II / AC Type II
PID zero Yes
Battery input reverse  polarity protection Yes
General data 　
Topology (solar / battery) Transformerless / Transformerless
Degree of protection IP65
Dimensions (W * H * D) 620 mm * 480  mm * 245 mm
Weight 38 kg 40 kg
Mounting method Wall-mounting bracket
Operating ambient temperature range -25 ℃ - 60 ℃
Allowable relative humidity range(Non-condensing) 0 % - 100 %
Cooling method Natural convection Fan cooling
Max. operating altitude 2000  m
Noise(Typical) 35 dB ( A ) 50 dB ( A )
Display LED
Communication RS485, WLAN, Ethernet, CAN
DI / DO DI * 4 / DO * 2 / DRM0
DC connection type MC4 compatible connector ( PV,Max.6 mm² ) /Plug and  play connector ( battery, Max.10 mm² )
AC connection type Plug and  play connector ( Max.16 mm² )
Compliance IEC / EN 62109, IEC 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 62920, EN 55011, CISPR 11,
VDE-AR-N-4105, EN 50549-1, NRS 097, AS/NZS 4777.2:2020, TOR Type A, R25, CEI 0-21
